Schedule Overview

User can configure 9 different Central Schedule types.

Playback
Multimedia (Zone)
Image (Zone)
Ticker (Zone)
HTML/Flash (Zone)
Volume
Skin (Legacy)
Playlist (Legacy)

Playback

This is the main schedule for SMP-NEO software. The User needs to configure this type of Schedule first for all SMP players embedded with SMP-NEO. This type will be applied when the user configures "Central Scheduling" as playback item in SMP-NEO software.

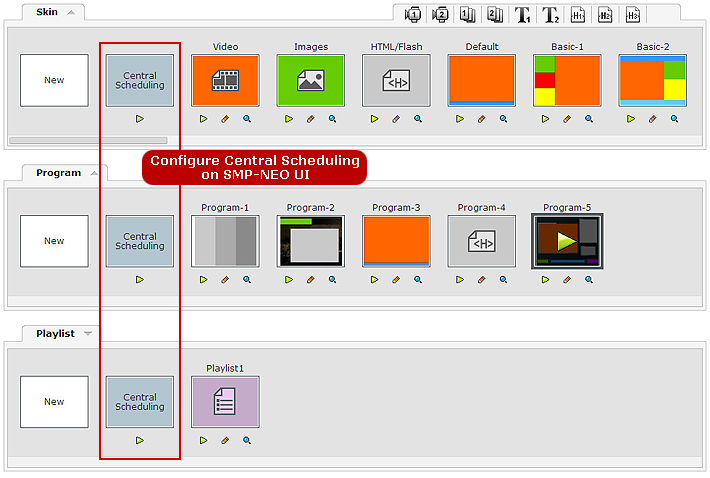

Configure Central Scheduling on SMP-NEO UI

Multimedia/Image/Ticker/HTML/Flash (Zone)

There are 5 types of zone schedules and will be applied to the following cases:

When the user configures Central Scheduling in a zone of Skin
When the user configures Central Scheduling in a zone of Program

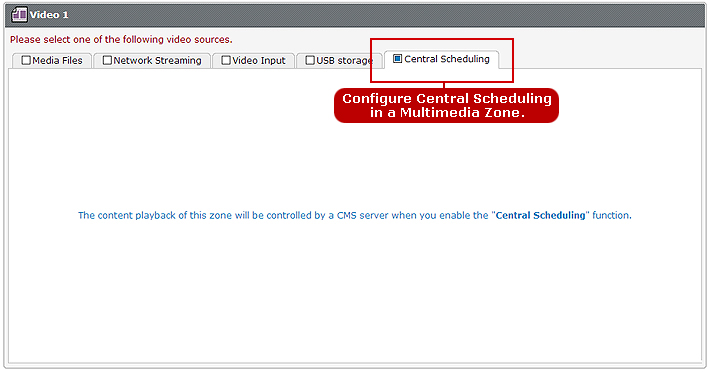

Configure Central Schduling on a Multimedia Zone.

Volume

This type is applied to the SMP players with Volume Central Schduling.

Skin(Legacy)

This type is applied to SMP-PRO4, SMP-200, SMP-300 players. SMP-NEO doesn't apply to this type of Central Scheduling.

(Web) Playlist (Legacy)

This type is applied to SMP-WEB4, SMP-WEBDUO players. SMP-NEO doesn't apply to this type of Central Scheduling.
